Tile Roof Mounting System III
Available for purchase
Product Features
01
Suitable for both commercials and residential roof applications.
02
High grade anodized aluminum and stainless steel components.
03
Less accessories for easy installation,save the construction time and cost.
Technical Parameter
- Parameters
- Roof Hook
- Rail
- Material
- Rail Connector
- Tile Roof Hooks
| Parameters | |||
| Material | AL6005-T5, SUS304/SUS410 | Module orientation | Landscape and portrait |
| Surface treatment | Anodized | Applicable module thickness | 30mm-40mm |
| Module | Framed | Warranty | 10 years |
Roof Hook
| Item number | Thickness | Material |
| RH-0001 | 5mm | SUS 304 |
| Roof decking | ||
| Tiled roof |
| Item number | Thickness | Material |
| RH-0018 | 5mm | SUS 304 |
| Roof decking | Carriage bolts | |
| Tiled roof | st6.3*80mm |
| Item number | Thickness | Material |
| RH-0037 | 6mm | SUS 304 |
| Roof decking | Carriage bolts | |
| Tiled roof | M10*25*1 |
| Item number | Thickness | Material |
| RH-304-0801 | 6mm | SUS 304 |
| Roof decking | Carriage bolts | |
| Tiled roof | M10*25*1 |

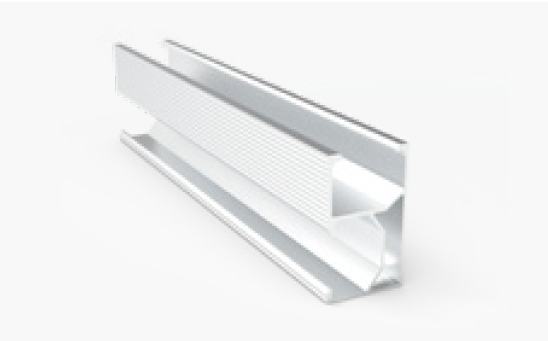

Rail
| Item No. | W | H | Material |
| RH-0066 | 40mm | 40mm | AL 6005-T5 |
| Long rails available for cutting to customized sizes | |||
Material
| Material |
| AL 6005-T5 |

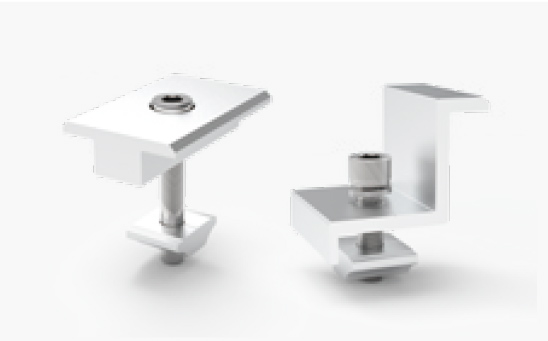

| Universal module clamps |

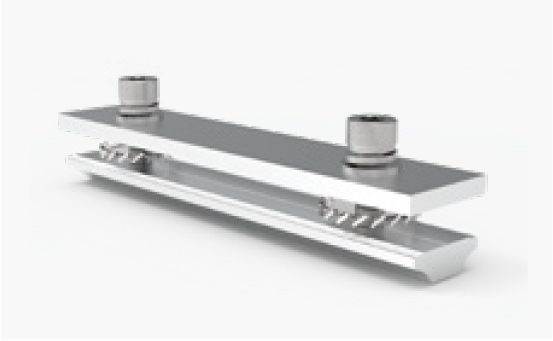

Rail Connector
| Item No | Material |
| SR-0028 | AL 6005-T5 + SUS 304 |
